|JetSaw = Waterjet + Bridge Saw|

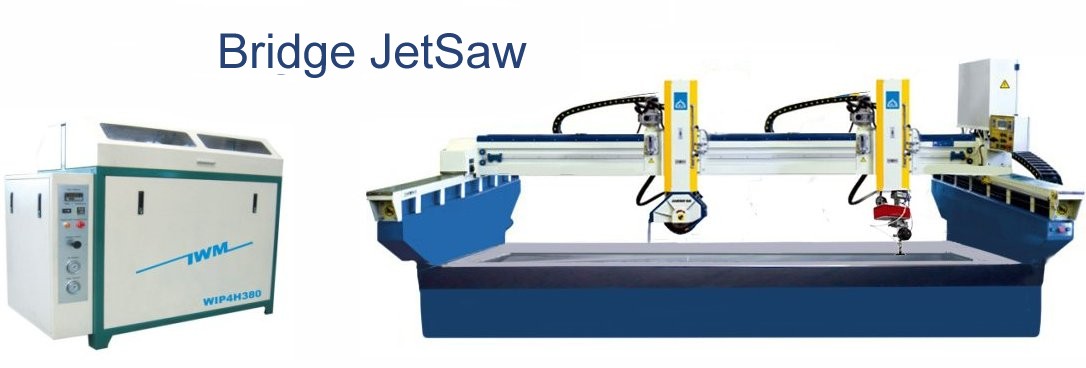

Bridge saw and waterjet combined togehter is called jetsaw stone cutting machine. Waterjet cuts slower than the circular saw, but it is useful to cut inner openning, such as a sink hole, or the curved portion of outer frame. The circular blade saw then takes advantage of its fast cutting speed to complete the straight portion of the outer frame. With the help of CNC controller, the cuts done by the waterjet and by the blade saw can be accurately aligned and positioned. The combination of waterjet and blade saw on the same bridge greatly improves the efficiency by reducing the time of loading/unloading between stand alone waterjet and bridge saw machines, and reducing the time for adjusting alignment to the machine too.
Jetsaw stone cutting machine specification:
a) Cutting area: 6.5'x 10' (2x3m), or can be custom size.
b) Power of saw: 15kw.
c) Diameter of saw: 20".
d) Waterjet max pressure: 55000psi, 37kw.
e) Waterjet intensifier type pump.
f) Optional 4 or 5 axis waterjet cutting head to reduce taper.
See more about Waterjet stone cutting machine.
