Waterjet spare parts                               Page 1     Page 2     Page 3     Page 4     Page 5


Special promotion of ultra high pressure stailess steel tubing and fitting up to 65,000 psi.
Large stock at whole sale price. Features cold draw, seamless and thick wall high pressure tubing.
Stock length up to 30 ft. Free cut to length. Large quanty discount available. details


Picture Part Number Descriptions of spare parts of waterjet
High pressure tubing WP100141-1 WP100141-2 WP100141-3 Stainless steel high pressure tubing: Od=1/4" (7mm), 65,000 psi.
Stainless steel high pressure tubing: Od=3/8" (10mm),   65,000 kpsi.
Stainless steel high pressure tubing: Od=9/16" (14mm), 65,000 kpsi.
nipple WP100154-1 WP100154-2 Nipple: Od=1/4" (7mm) 60 kpsi, high pressure, made with stainless steel.
Nipple: Od=3/8" (10mm)   60 kpsi, high pressure, made with stainless steel.
gland WP100145-1 WP100145-2 High pressure fitting: Gland for 1/4" or 3/8" high pressure tubing,
made of stainless steel.
Collar WP100143-1 WP100143-2 High pressure fitting: Collar for 1/4" or 3/8" high pressure tubing,
made of stainless steel.

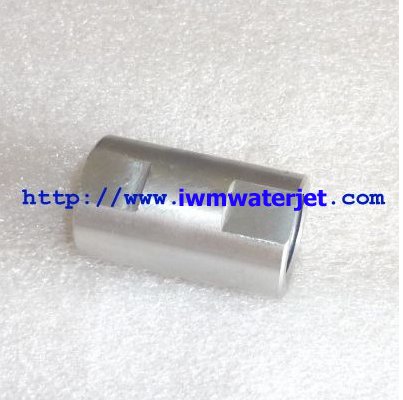

coupler WP100156-1 WP100156-2 High pressure fitting: Coupler 1/4" or 3/8",
used to join 1/4" or 3/8" stainless steel high pressure tubing.

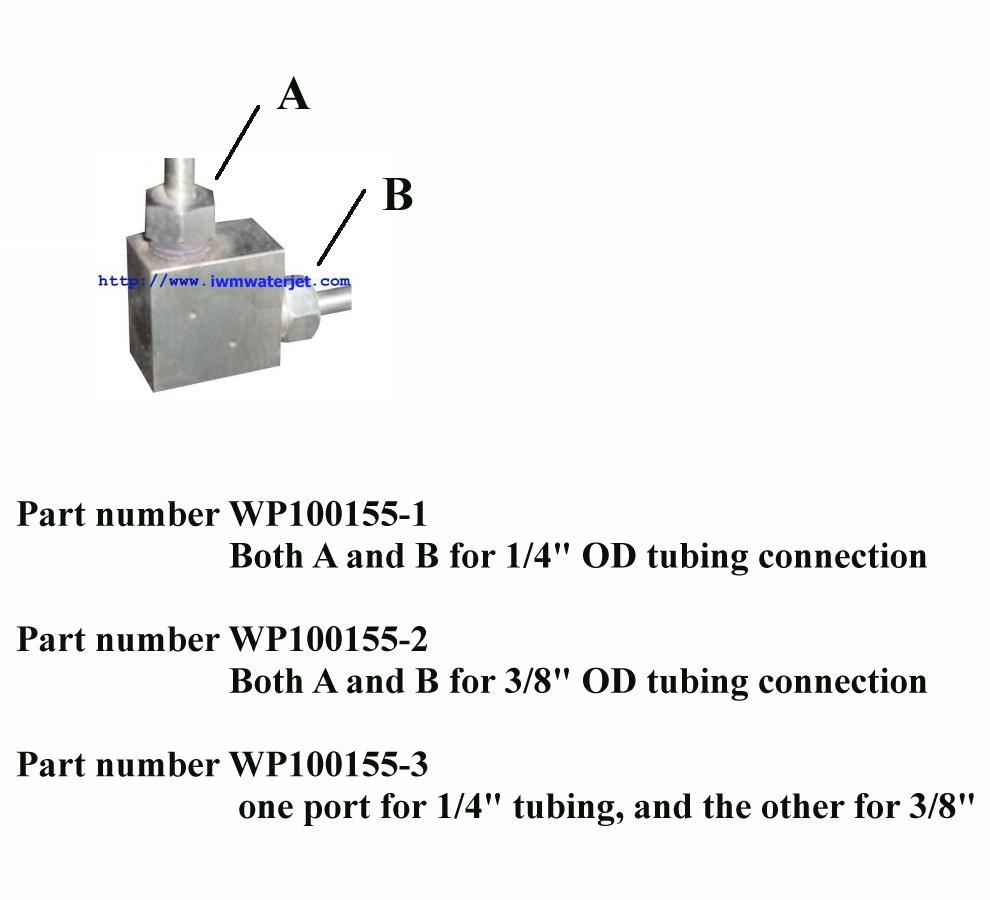

elbow WP100155-1 WP100155-2 High pressure fitting: Elbow 1/4" or 3/8",
used to join 1/4" or 3/8" stainless steel high pressure tubing.

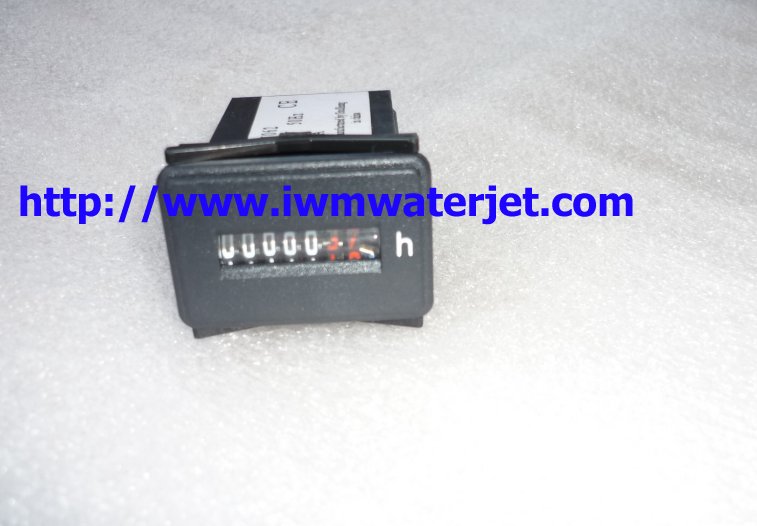

timer WP100160-1,2,3 Timer: 7-digit timer, 24VDC, 110VAC, 220VAC, 50/60 Hz

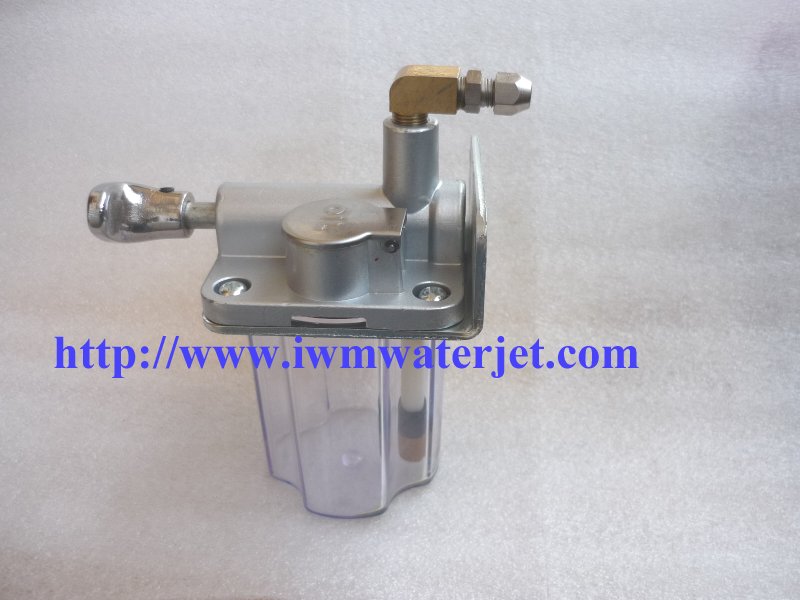

Manual oil pump WP100161 Manual pump for lubrication
bluegoop BGAS-002 Blue goop anti-seizure agent

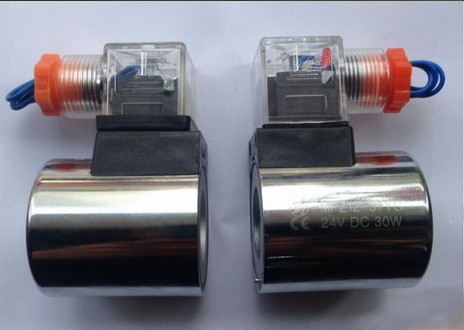

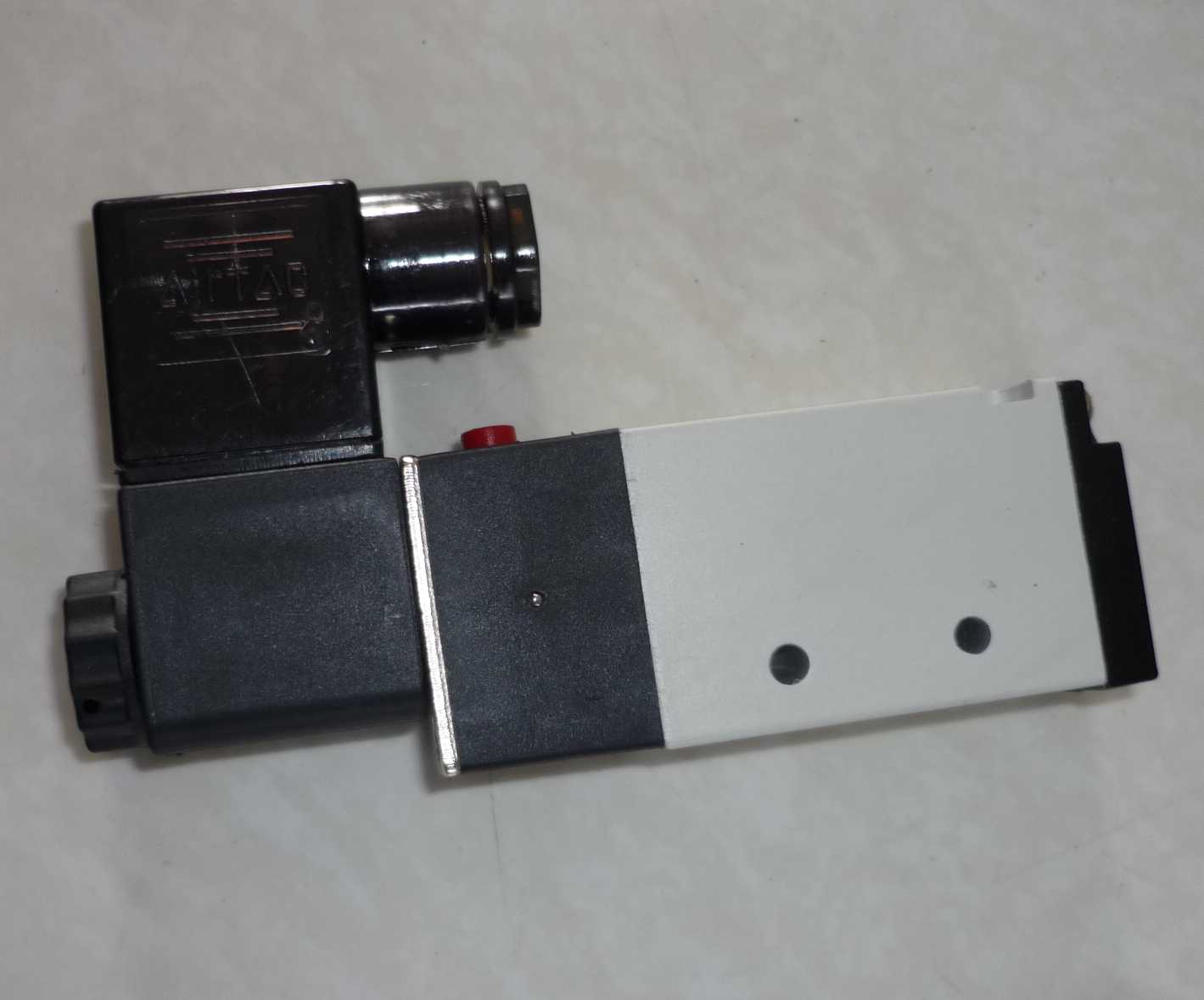

solenoid_valve WP100166 Solenoid valve for waterjet on/off valve or abrasive valve

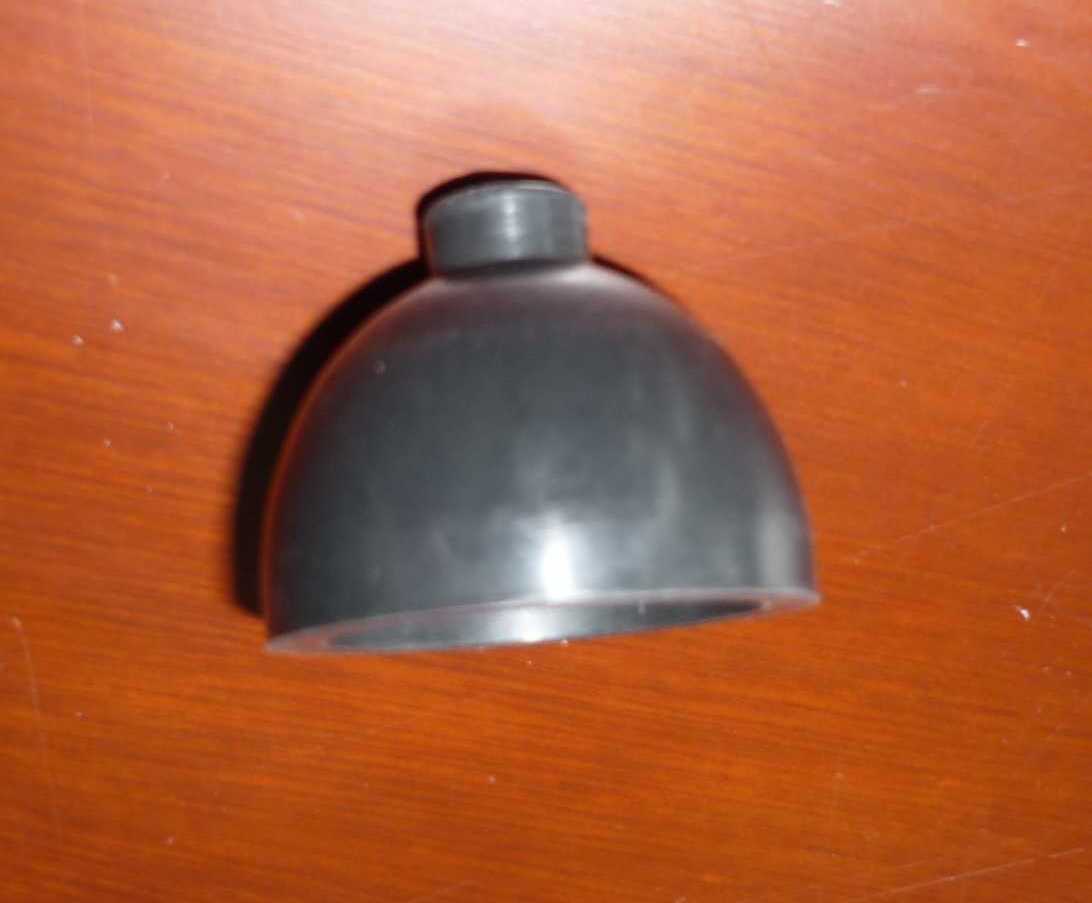

Water splash shielding WP100167 Water splash shielding at waterjet cutting head

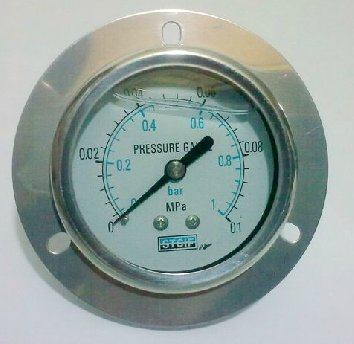

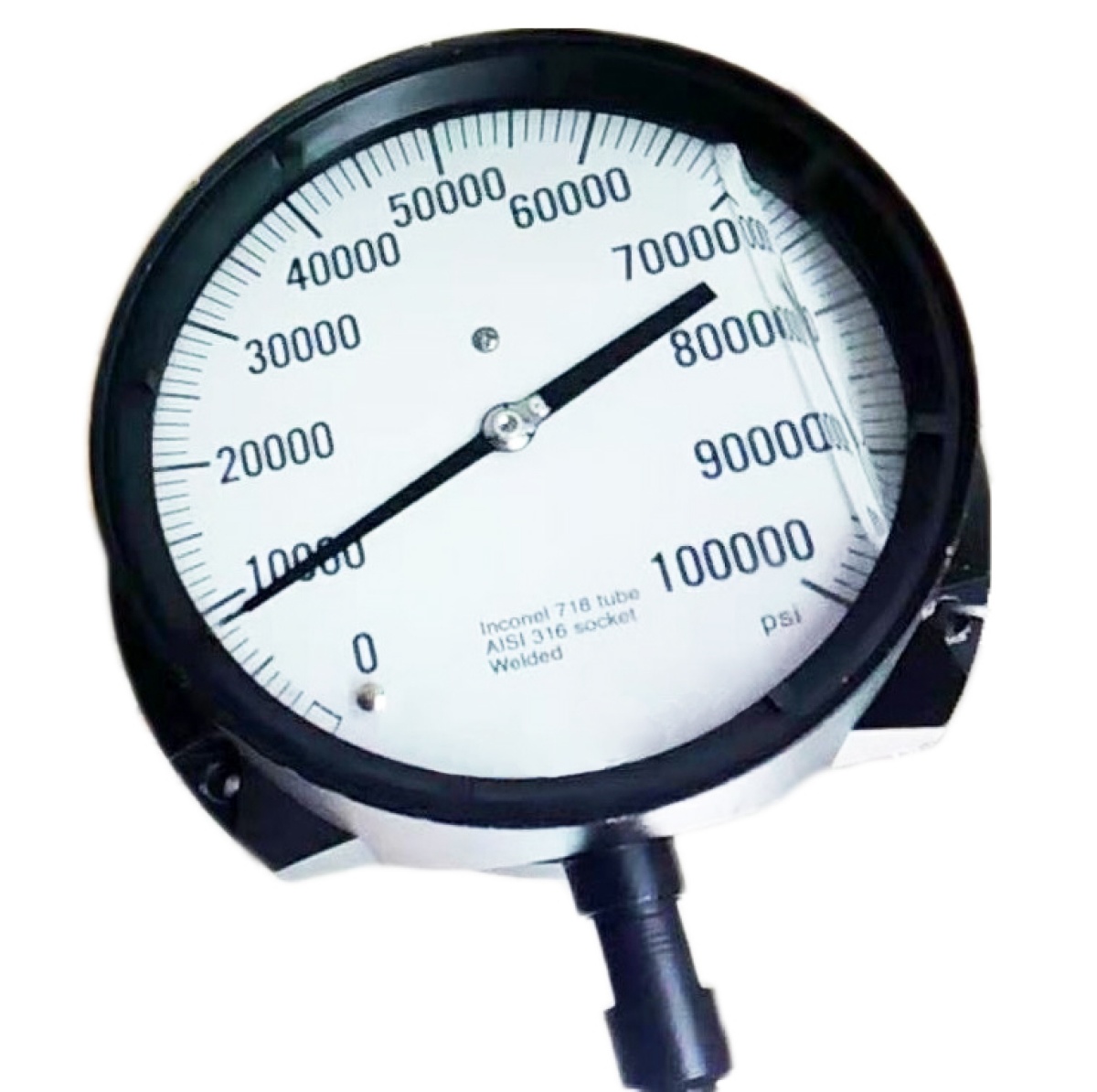

pressure gauge pressure gauge WP100170-0 WP100170-1 WP100170-0040 WP100170-0060 WP100170-0400 Digital pressure display
analog pressure gauge 0-1.6Mpa
analog pressure gauge 0-40Mpa
analog pressure gauge 0-60Mpa
analog pressure gauge 0-400Mpa
plate style hydraulic heat exchanger WP100139 waterjet intensifier plate style hydraulic heat exchanger
Electric Oil Chiller WP100140 Electric Oil Chiller

                              Page 1     Page 2     Page 3     Page 4     Page 5

Stainless steel thick wall high pressure tubing

                                                            High pressure tubing

Waterjet high pressure tubing sustains pressure of over 60,000 PSI. The tubing often has coned and threaded endings and requires collar and gland for connection.

  • tubing made with high strength stainless steel 316, 321
  • seamless cold draw stainless steel tubing
  • thick wall tubing for high pressure applications
  • tubing sizes are OD= 1/4", 3/8", and 9/16"
  • Stock tubing length from 20-25 ft (6-8meters)
  • pressure up to 60,000 PSI
  •                               High pressure tubing

    Stainless steel high pressure fittings

  • stainless steel collar and gland
  • high pressure stainless steel nipple
  • 90 degree elbow
  • straight coupling
  • for connection of tubing size OD= 1/4", 3/8", and 9/16"
  • Pressure up to 65,000 psi
  • Most common application: waterjet cutting machine
