CNC Laser Cutting Machine

Fiber laser cutting machines have become increasingly popular for processing a wide range of materials, both metal and non-metal. Advances in laser power have significantly enhanced cutting capabilities, allowing for greater material thickness. Additionally, the continued development of this technology has improved durability and reduced the cost of consumable parts, making fiber laser cutting more affordable and cost-effective for a diverse range of industries. Please flow this link to get more information about handheld laser welding, cutting, and cleaning machine

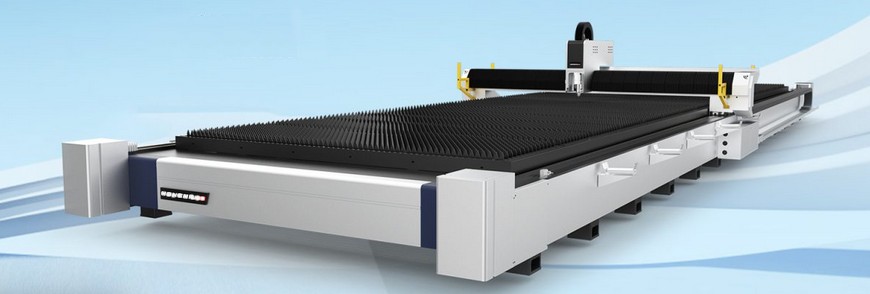

Single table CNC laser cutters

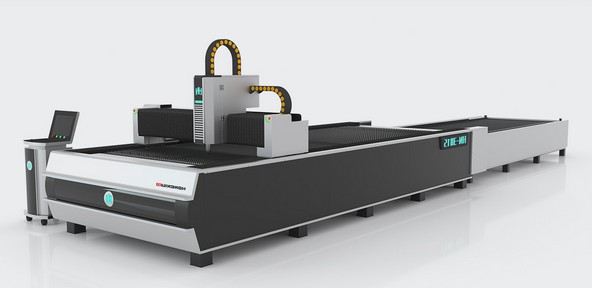

Exchangable table CNC laser cutting machines

Single table laser cutting machine is easy to setup, easy to learn, and easy to maintain. With CNC control, cutting edge is smooth, and size is accurate.

Exchangable table CNC laser cutter allows one table under cutting operation and the other table being loading and unloading for high efficiency.

High cutting power selection of 9000W, 12000W, 15000W, 20000W.

Suitable to cut carbon steel and low reflective metals.

CNC controlled for complicated 2D shape cutting.

High speed cutting, cost effective.

Accurate and smooth edge.

Low comsumable and maintenance cost.

With small thickness sheet metal cuttng, loading/unloading time becomes significant compared to Cutting time.

Exchangable table allows one table unhder cutting while the other table is being loading/unloading.

Use suitable laser power to cut sheet metal to avoid over melting and poor edge quality.

Models and specification:

Models	Fiber laser power: 1500W	Fiber laser power: 3000W	Fiber laser power: 6000W	Fiber laser power: 12000W	Fiber laser power: 15000W
5'x10' 1500x3000mm	Model: LS3015-15 Cutting area: 5'x10' 1500x3000mm Cut steel up to: 5mm Cutting speed of 5mm steel: 1m/min LS3015-15 specification	Model: LS3015-30 Cutting area: 5'x10' 1500x3000mm Cut steel up to: 8mm Cutting speed of 8mm steel: 1m/min	Model: LS3015-60 Cutting area: 5'x10' 1500x3000mm Cut steel up to: 12mm Cutting speed of 12mm steel: 1m/min	Model: LS3015-120 Cutting area: 5'x10' 1500x3000mm Cut steel up to: 20mm Cutting speed of 20mm steel: 1m/min	Model: LS3015-150 Cutting area: 5'x10' 1500x3000mm Cut steel up to: 25mm Cutting speed of 25mm steel: 1m/min
6'x13' 2000x4000mm	Model: LS4020-15 Cutting area: 6'x13' 1500x3000mm Cut steel up to: 5mm Cutting speed of 5mm steel: 1m/min	Model: LS4020-30 Cutting area: 6'x13' 1500x3000mm Cut steel up to: 8mm Cutting speed of 8mm steel: 1m/min LS4020-30 specification	Model: LS4020-60 Cutting area: 6'x13' 1500x3000mm Cut steel up to: 12mm Cutting speed of 12mm steel: 1m/min	Model: LS4020-120 Cutting area: 5'x10' 1500x3000mm Cut steel up to: 20mm Cutting speed of 20mm steel: 1m/min	Model: LS4020-150 Cutting area: 6'x13' 1500x3000mm Cut steel up to: 25mm Cutting speed of 25mm steel: 1m/min
6'x20' 2000x6000mm	Model: LS6020-15 Cutting area: 6'x20' 1500x3000mm Cut steel up to: 5mm Cutting speed of 5mm steel: 1m/min	Model: LS6020-30 Cutting area: 6'x20' 1500x3000mm Cut steel up to: 8mm Cutting speed of 8mm steel: 1m/min	Model: LS6020-60 Cutting area: 6'x20' 1500x3000mm Cut steel up to: 12mm Cutting speed of 12mm steel: 1m/min LS6020-60 specification	Model: LS6020-120 Cutting area: 6'x20' 1500x3000mm Cut steel up to: 20mm Cutting speed of 20mm steel: 1m/min	Model: LS6020-150 Cutting area: 6'x20' 1500x3000mm Cut steel up to: 25mm Cutting speed of 25mm steel: 1m/min LS6020-150 specification
Custom table sizes or with exchangable table	Model: LSxxxx-15 With exchange table LSxxxx-E-15 Cut steel up to: 5mm Cutting speed of 5mm steel: 1m/min	Model: LSxxxx-30 With exchange table LSxxxx-E-30 Cut steel up to: 8mm Cutting speed of 8mm steel: 1m/min	Model: LSxxxx-60 With exchange table LSxxxx-E-60 Cut steel up to: 12mm Cutting speed of 12mm steel: 1m/min LS6020-E-60 specification	Model: LSxxxx-120 With exchange table LSxxxx-E-120 Cut steel up to: 20mm Cutting speed of 20mm steel: 1m/min	Model: LSxxxx-150 With exchange table LSxxxx-E-150 Cut steel up to: 25mm Cutting speed of 25mm steel: 1m/min

Models

Fiber laser power:
1500W

Fiber laser power:
3000W

Fiber laser power:
6000W

Fiber laser power:
12000W

Fiber laser power:
15000W

5'x10'
1500x3000mm

5'x10' CNC laser cutter

Model: LS3015-15

Cutting area: 5'x10' 1500x3000mm

Cut steel up to: 5mm

Cutting speed of 5mm steel: 1m/min

LS3015-15 specification

Model: LS3015-30

Cutting area: 5'x10' 1500x3000mm

Cut steel up to: 8mm

Cutting speed of 8mm steel: 1m/min

Model: LS3015-60

Cutting area: 5'x10' 1500x3000mm

Cut steel up to: 12mm

Cutting speed of 12mm steel: 1m/min

Model: LS3015-120

Cutting area: 5'x10' 1500x3000mm

Cut steel up to: 20mm

Cutting speed of 20mm steel: 1m/min

Model: LS3015-150

Cutting area: 5'x10' 1500x3000mm

Cut steel up to: 25mm

Cutting speed of 25mm steel: 1m/min

6'x13'
2000x4000mm

6'x13' CNC laser cutting machine

Model: LS4020-15

Cutting area: 6'x13' 1500x3000mm

Cut steel up to: 5mm

Cutting speed of 5mm steel: 1m/min

Model: LS4020-30

Cutting area: 6'x13' 1500x3000mm

Cut steel up to: 8mm

Cutting speed of 8mm steel: 1m/min

LS4020-30 specification

Model: LS4020-60

Cutting area: 6'x13' 1500x3000mm

Cut steel up to: 12mm

Cutting speed of 12mm steel: 1m/min

Model: LS4020-120

Cutting area: 5'x10' 1500x3000mm

Cut steel up to: 20mm

Cutting speed of 20mm steel: 1m/min

Model: LS4020-150

Cutting area: 6'x13' 1500x3000mm

Cut steel up to: 25mm

Cutting speed of 25mm steel: 1m/min

6'x20'
2000x6000mm

Model: LS6020-15

Cutting area: 6'x20' 1500x3000mm

Cut steel up to: 5mm

Cutting speed of 5mm steel: 1m/min

Model: LS6020-30

Cutting area: 6'x20' 1500x3000mm

Cut steel up to: 8mm

Cutting speed of 8mm steel: 1m/min

Model: LS6020-60

Cutting area: 6'x20' 1500x3000mm

Cut steel up to: 12mm

Cutting speed of 12mm steel: 1m/min

LS6020-60 specification

Model: LS6020-120

Cutting area: 6'x20' 1500x3000mm

Cut steel up to: 20mm

Cutting speed of 20mm steel: 1m/min

Model: LS6020-150

Cutting area: 6'x20' 1500x3000mm

Cut steel up to: 25mm

Cutting speed of 25mm steel: 1m/min

LS6020-150 specification

Custom table sizes or with exchangable table

Model: LSxxxx-15
With exchange table
LSxxxx-E-15

Cut steel up to: 5mm

Cutting speed of 5mm steel: 1m/min

Model: LSxxxx-30
With exchange table
LSxxxx-E-30

Cut steel up to: 8mm

Cutting speed of 8mm steel: 1m/min

Model: LSxxxx-60
With exchange table
LSxxxx-E-60

Cut steel up to: 12mm

Cutting speed of 12mm steel: 1m/min

LS6020-E-60 specification

Model: LSxxxx-120
With exchange table
LSxxxx-E-120

Cut steel up to: 20mm

Cutting speed of 20mm steel: 1m/min

Model: LSxxxx-150
With exchange table
LSxxxx-E-150

Cut steel up to: 25mm

Cutting speed of 25mm steel: 1m/min

Flow this link to see more pictures of CNC laser cutting machines

Highlights of IWM's CNC laser cutters

Rigid welded cutting table body with Annealing heat treatment to release tension.
High precision linear guide and rack/pinion for accurate axis travel.
Various table types: single table, exchagable, large size table, and fully covered table.
Auto focus laser cutting head for high cutting efficiency.
Easy to learn CNC software and human machine interface (HMI).
Quick setup and easy programming (make money in short time).
High accuracy control of cutting, up to 0.1mm.
Flat bed laser cutting for plates, and/or combination of rotation structure for laser pipe cutting.

Major Applications of CNC Laser Cutter :

Sheet metal cutting.
Metal plate cutting.
Aluminum and Copper cutting.
Metal pipe cutting
Glass cutting.
