Portable waterjet spare parts.

CNC waterjet spare parts.

Plasma cutter consumable parts.

         Page 1     Page 2     Page 3     Page 4     Page 5
         Page 6     Page 7     Page 8     Page 9
         Mobile version

                              Order now

Picture	Part Number	Descriptions of waterjet spare parts
	NZ400x NZ410x NZ500x NZ510x NZ600x NZ610x	Waterjet nozzle: NZ510XE (example model explanation) \|-\|--\|--\|------E: ECL with ring \|-\|--\|--------X=2 ID=0.5mm, X=3 ID=0.76mm, X=4 ID=1.02mm \|-\|---------- X=6 ID=1.52mm, X=8 ID=2.04mm \|-\|---------- 0: L= 76mm(3"), 1: L = 102mm (4"), 3: L = 152mm (6") \|------------4: OD=6.35mm(1/4") 5: OD = 7.14mm (0.28"), ------------ 6: OD=9.52mm(3/8")

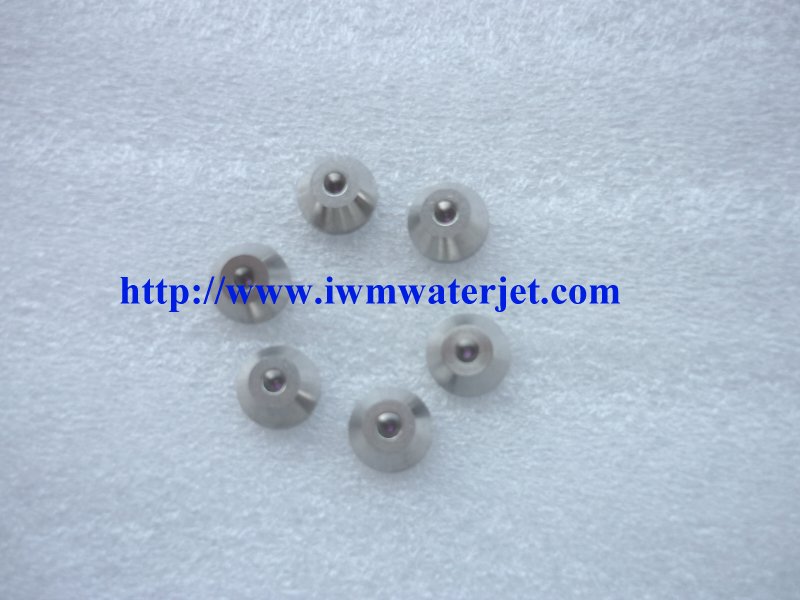

	OFJ0xx	Orifices for waterjet cutting machine, e.g. Id=0.25mm, part number is OFJ010 Id = 0.10mm(0.004"), 0.15mm(0.006"), 0.18mm(0.007"), 0.22mm, 0.25mm(0.010"), 0.30mm(0.012"), 0.33mm(0.013")

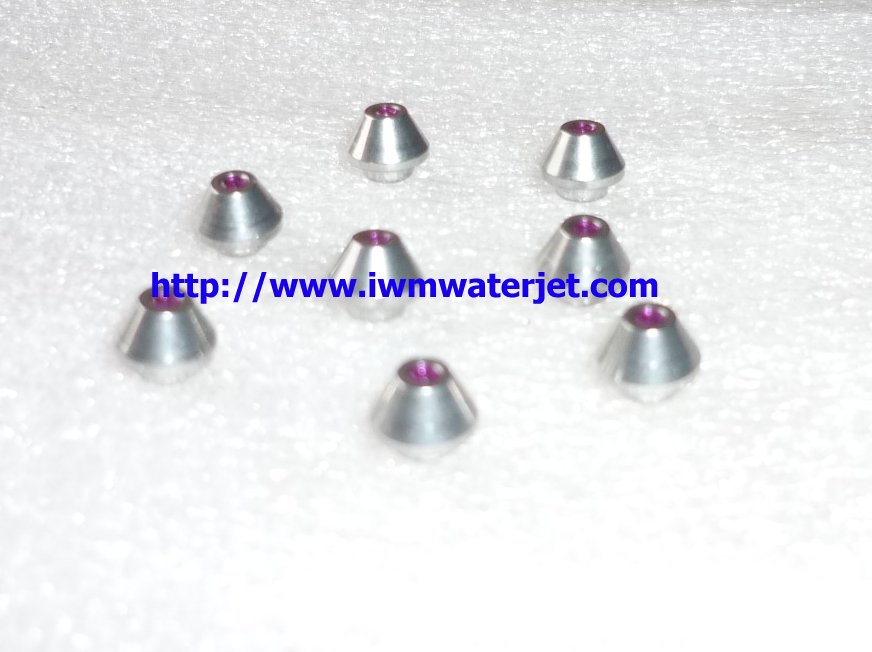

	OFJ1xx	Small size orifice: Id = 0.10mm, 0.15mm, 0.18mm, 0.22mm, 0.25mm, 0.30mm, 0.33mm

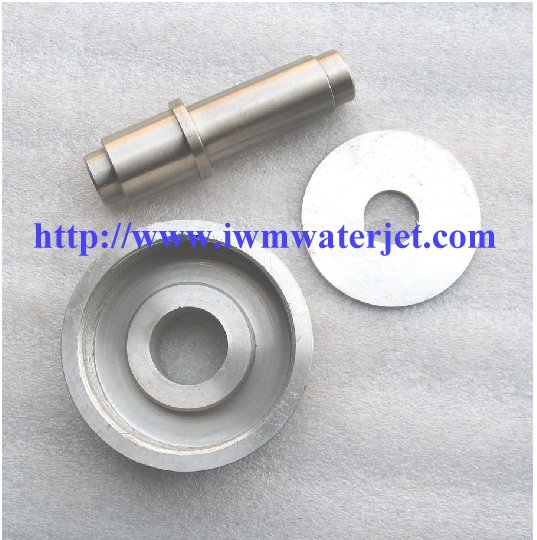

	Tool-hps	High pressure seal installation tool

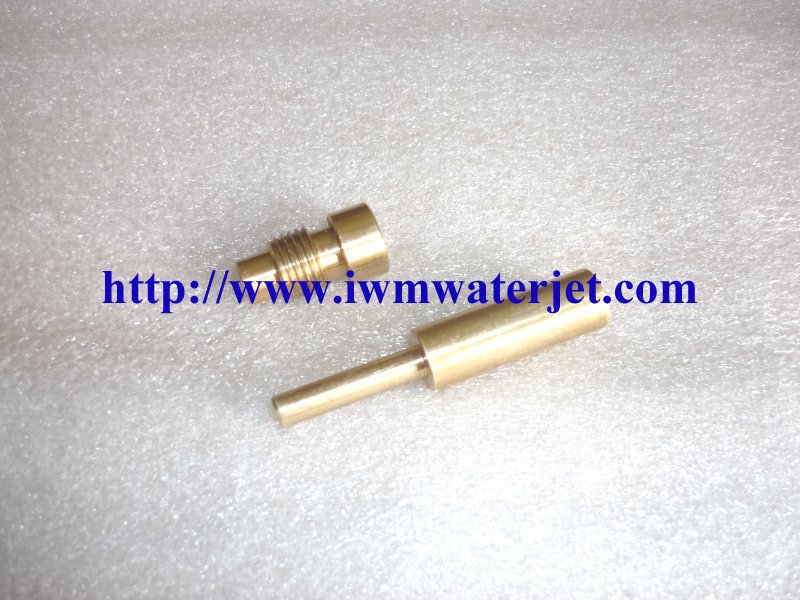

	Tool-ch	Special tool used to install on/off valve

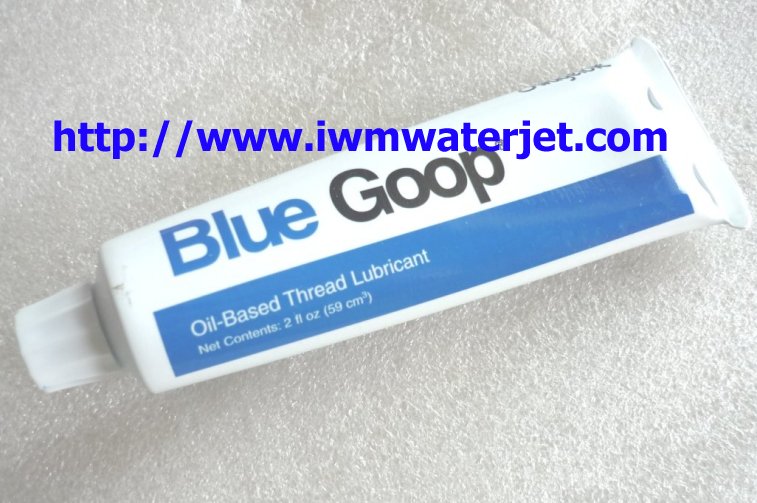

	BGAS-002	Blue goop anti-seizure agent
	WR0801	hand held waterjet remote control

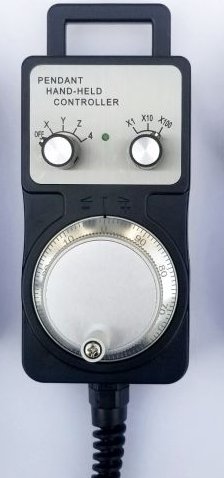

	WR0802	waterjet handwheel

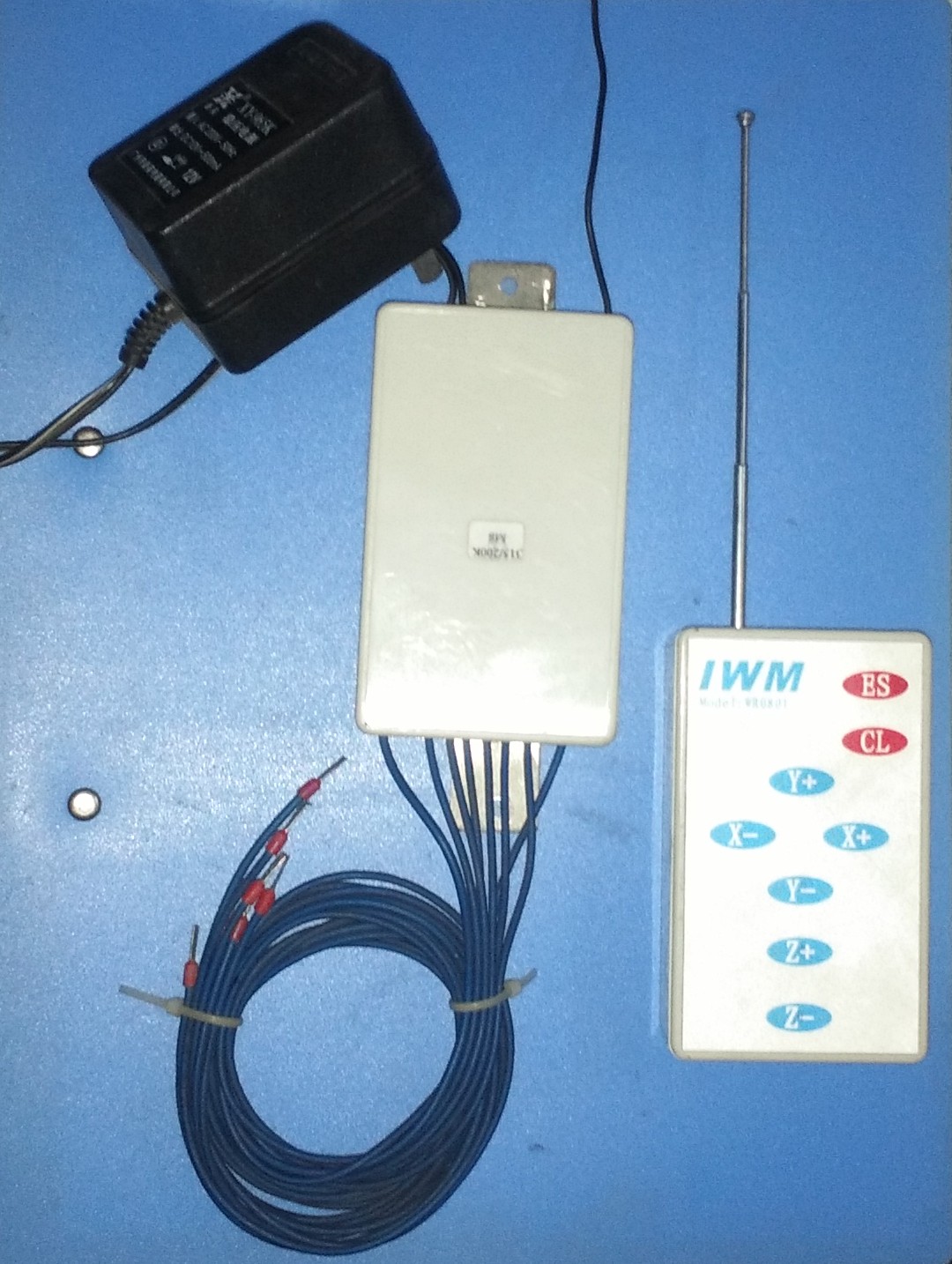

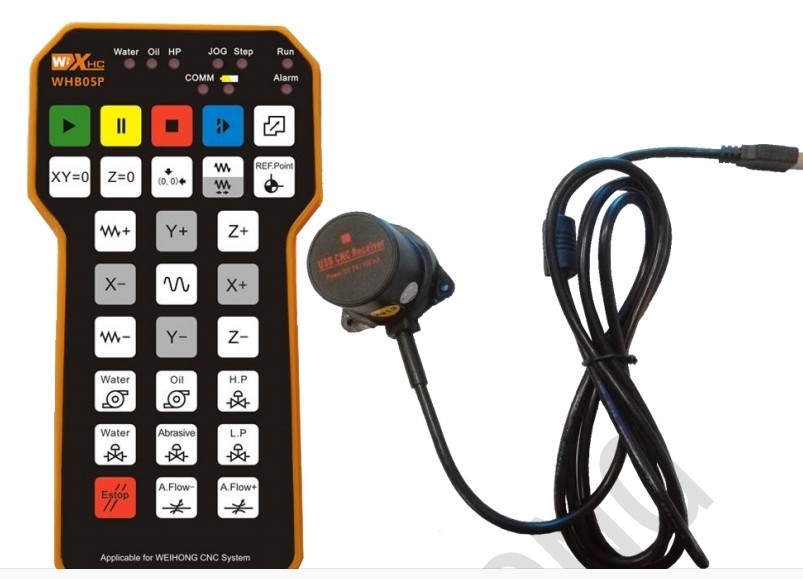

	WR0803	waterjet wireless remote control

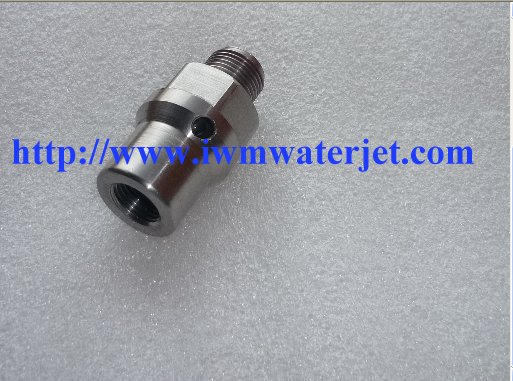

	CH100100	Mixing chamber of waterjet cutting head

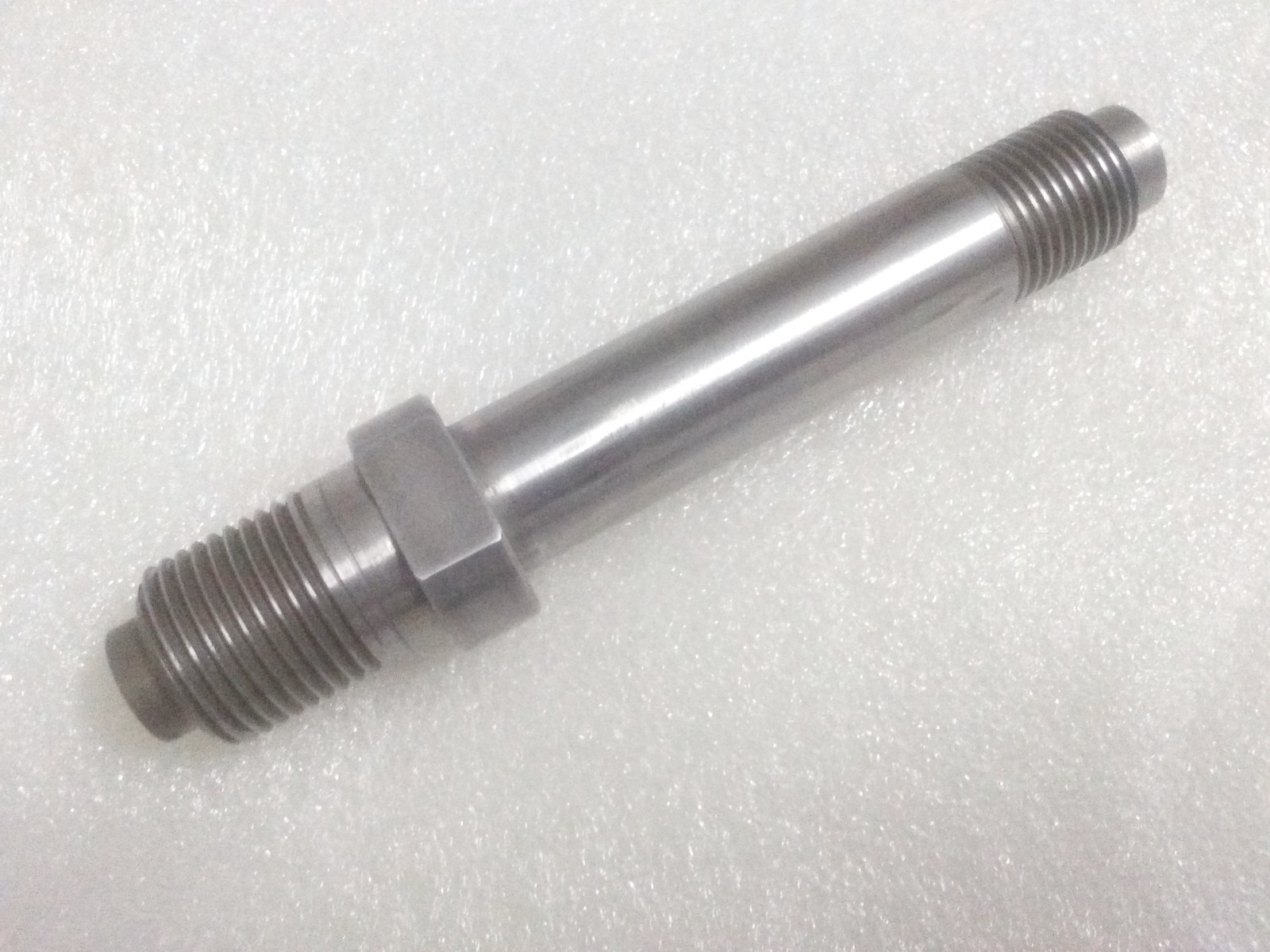

	CH100101	cutting head extension tube
	CH100102	Water splash shielding at waterjet cutting head
	CH100103	On/off valve air actuator assembly

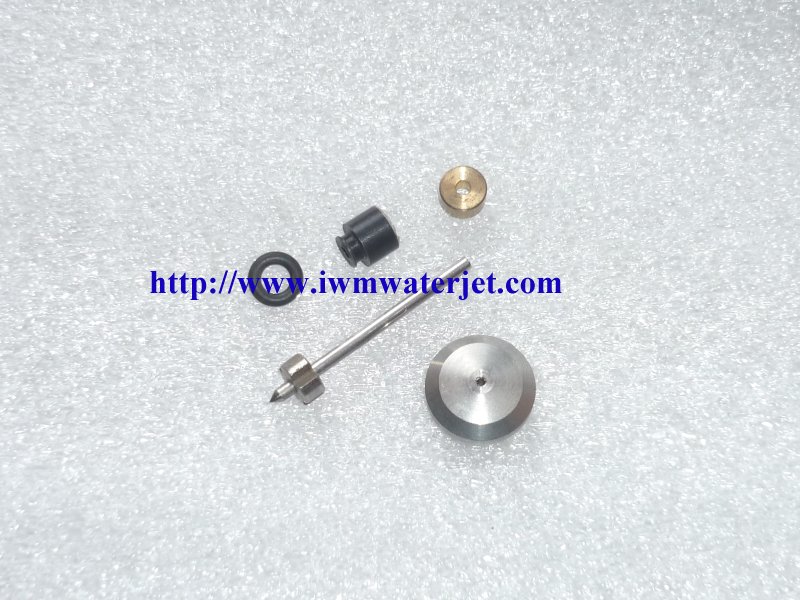

	CH100108	On/off valve repair kits of waterjet cutting machine

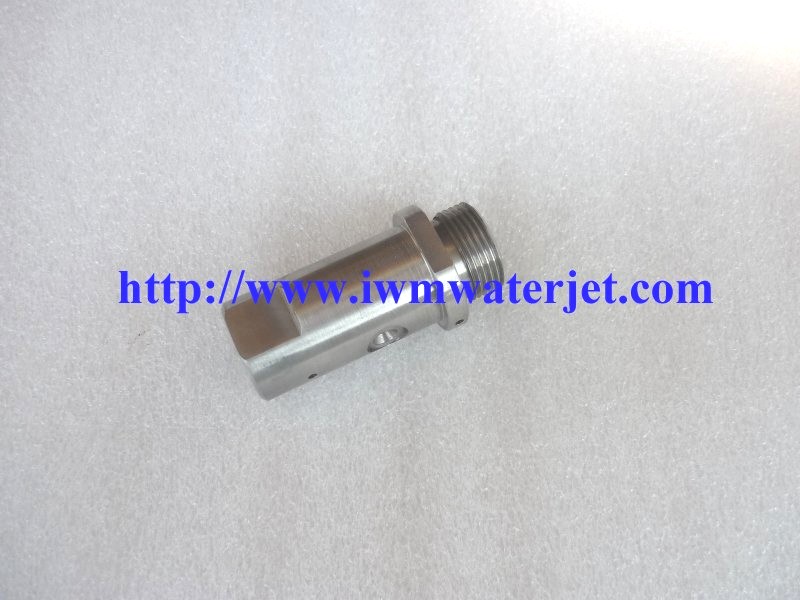

	CH100109	On/off valve housing body

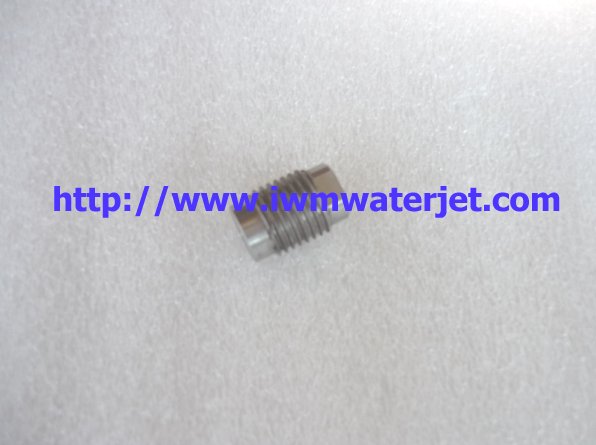

	CH100117-1	On/off valve retainer screw

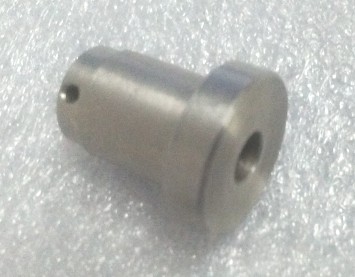

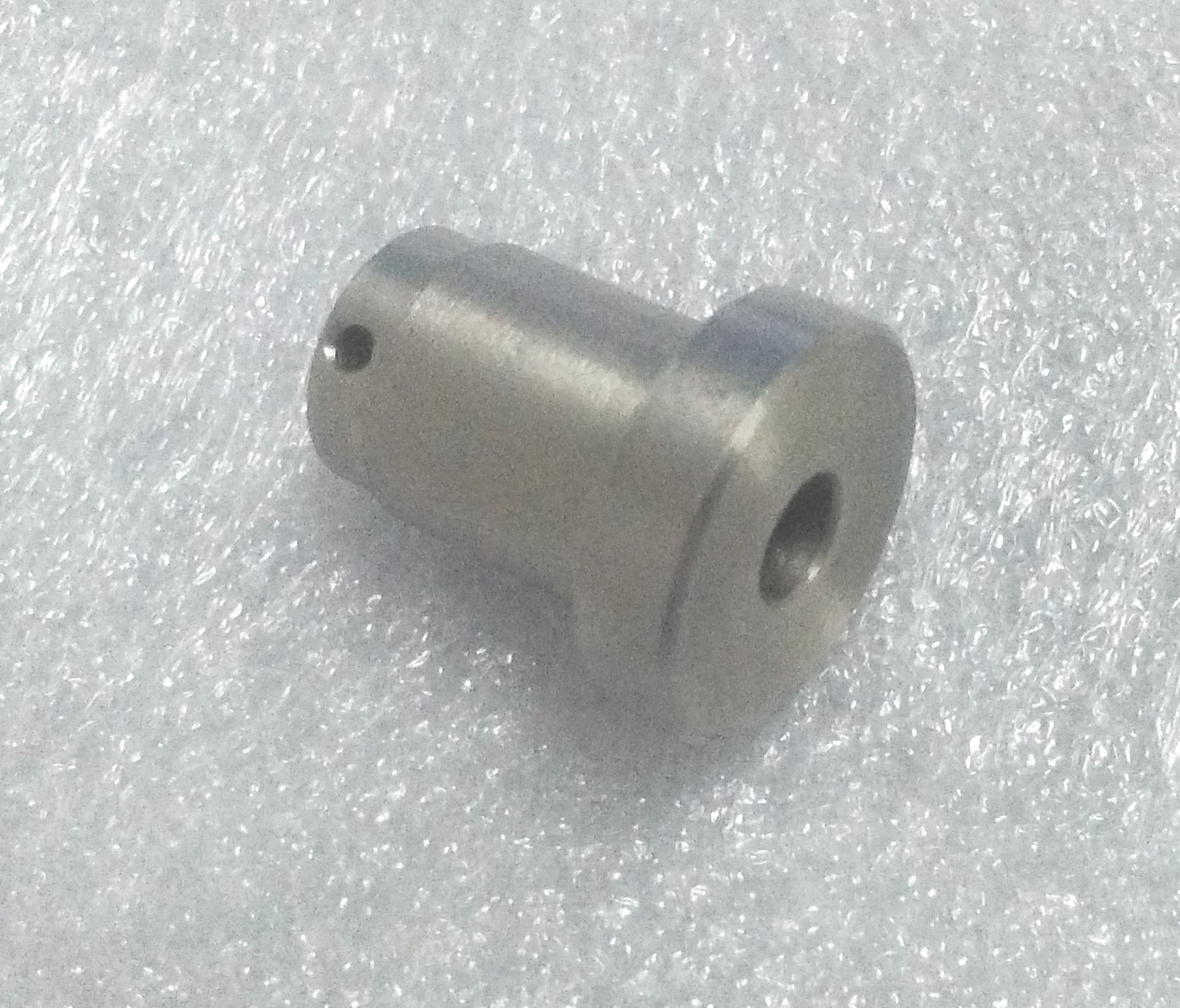

	CH100117-2	new style On/off valve retainer

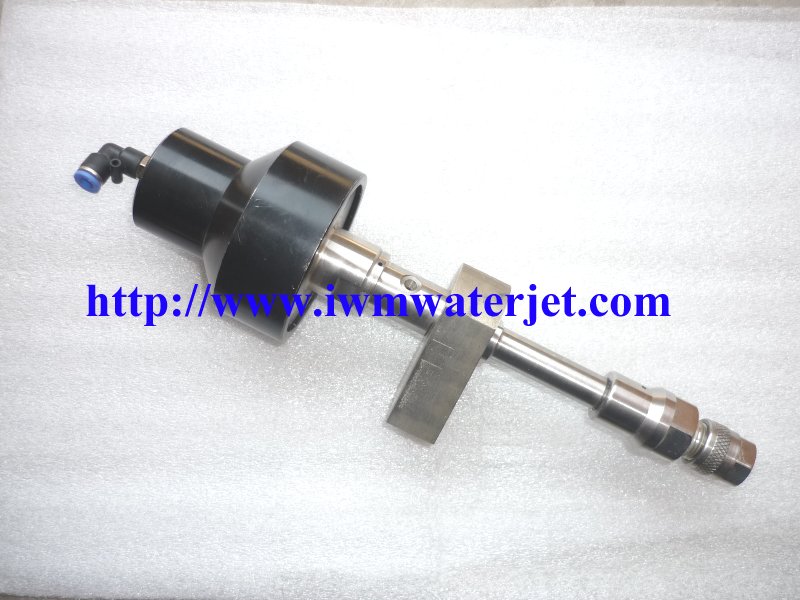

	CH100118	Complete waterjet machine cutting head with actuator and on/off valve

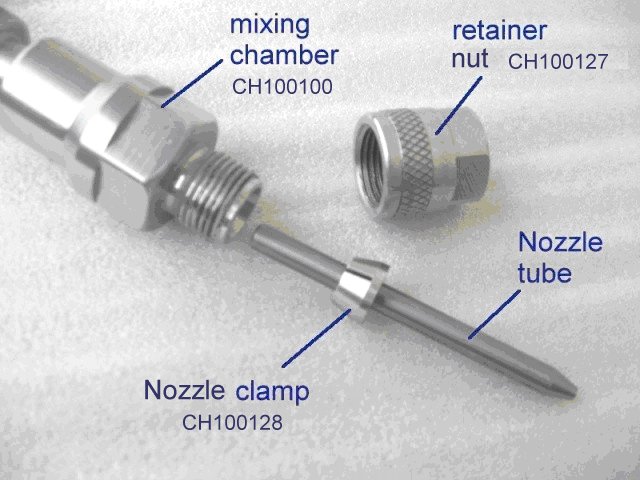

	CH100127	Nozzle retainer nut
	CH100128	Nozzle clamp

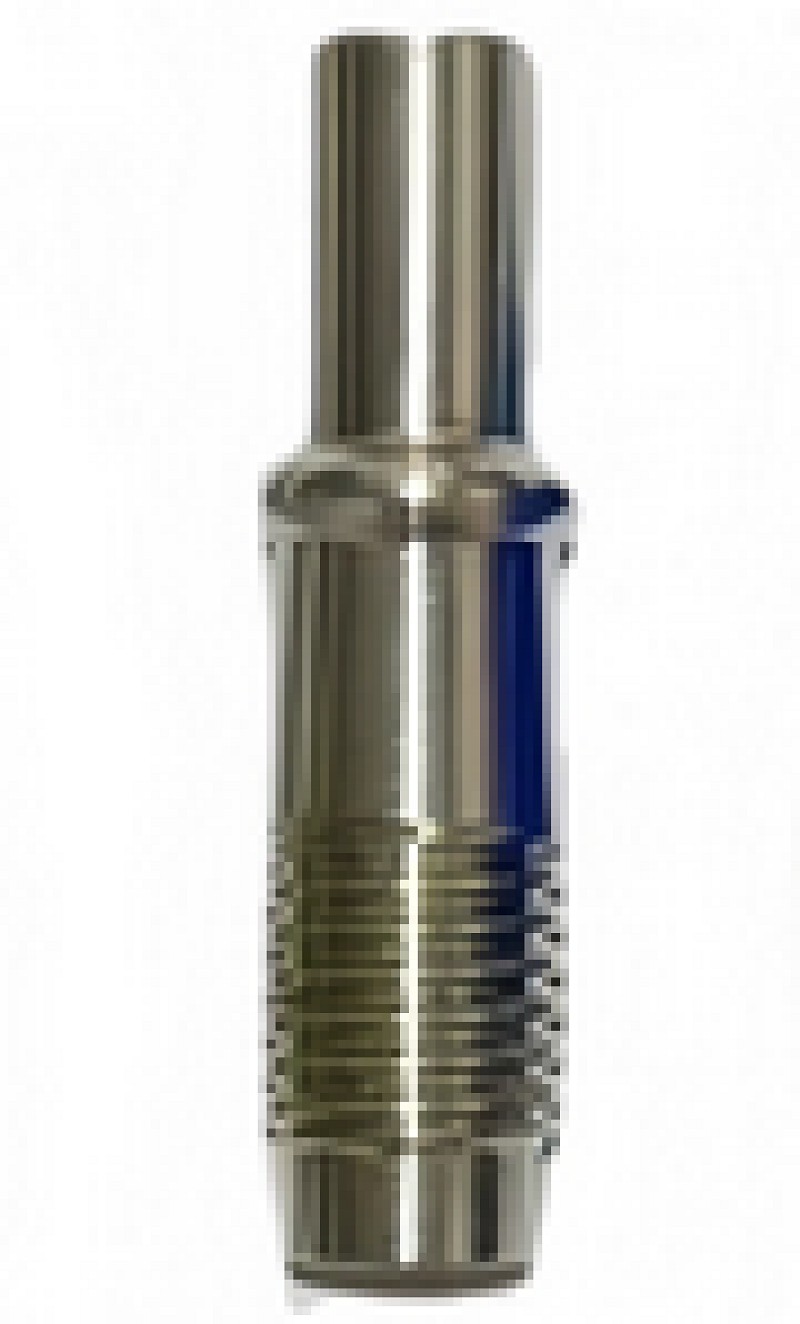

	CH100129	abrasive inlet coupler
	CH100135-1 CH100135-2	Mini hopper, stainless steel Mini hopper glass cup
	CH100136-1 CH100136-2 CH100136-3	Abrasive valve Rev1 Abrasive valve Rev2 Abrasive valve Rev3

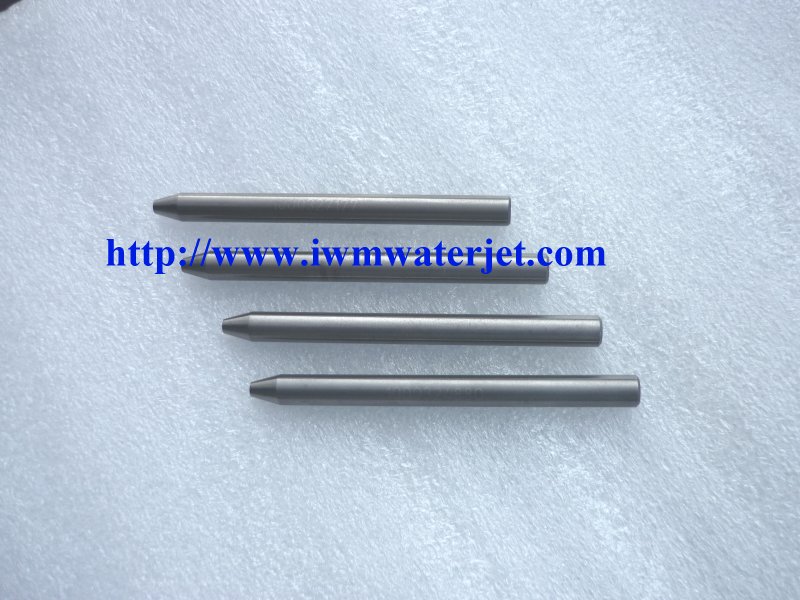

picture of waterjet nozzle.

Note: waterjet nozzle is also known as mixing tube. This is because the abrasive is mixed with water and accelerated inside this nozzle. The common length of nozzle is 3 inches. But there are also 4, 5, 6 inch long nozzle available. With the additional length, it is believed the abrasive gets accelerated more and the jet is more focused when exiting the nozzle. As a result, the cutting speed is improved. In addition, with everything else the same, the smaller id of the nozzle, the better focus of the jet, and the faster of cutting.
